Genesis SU
- Introducing a triple-chamber window system renowned for its outstanding thermal insulation, featuring a meticulously designed frame shape that extends the full height of the sash profile.
- Explore a diverse range of glazing options, catering to single and double-chamber, acoustic-insulated, or anti-burglary window panes, ensuring versatility to suit various needs.
- Select from two movable post options: a standard post and a narrow alternative, providing flexibility and enhancing natural light penetration as per your preferences.
- Choose between two profile drainage options: traditional and concealed, offering adaptable solutions tailored to your drainage requirements.
- Experience the convenience of profile bending, which provides detailed specifications and technical parameters for customized profile bending solutions.
Performance
| System name | Design Pressure (DP) | Structural Pressure (STP) | U-Factor | SHGC (Solar Heat Gain Coefficient) | Visible Transmittance | Condensation Resistance |
|---|---|---|---|---|---|---|
| Genesis Tilt Turn Window | +50.13psf | +75.19psf | from 0.18 | from 0.14 | from 0.26 | 49 |
| Genesis Fixed Window | none | none | from 0.16 | from 0.22 | from 0.45 | 49 |
Technical specification
Cross section

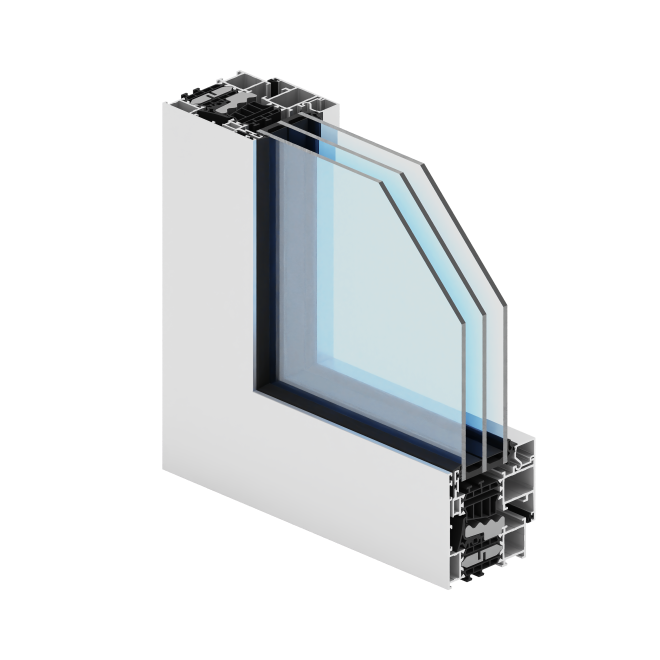

Visual
Technical specification
| SYSTEM | MATERIAL | DEPTH OF FRAME | DEPTH OF LEAF | GLAZING RANGE | TYPE OF WINDOWS |
| GN SU | aluminium/ polyamid | 261⁄64in | 31⁄8in | max 27⁄16in / fixed 221⁄64in | inswing, fixed window, hidden sash |
Cross section
Visual
- The concealed sash system, a favorite among designers, offers an elegant solution for aluminum-glass structures, seamlessly “concealing windows.” With this opening mechanism, both operable and fixed panes present a uniform appearance from the exterior,
- Experience the convenience of a low threshold option for single and double, rectangular balcony doors, incorporating specialized profiles for enhanced functionality.
- Explore a wide spectrum of colors, including selections from the RAL palette (Qualicoat 1518), textured hues, Wood Colour Effect for a wood-like aesthetic, Loft View for simulated stone surfaces (Qualideco PL-0001), anodized finishes (Qualanod 1808), and dual-color options.
Realizations
